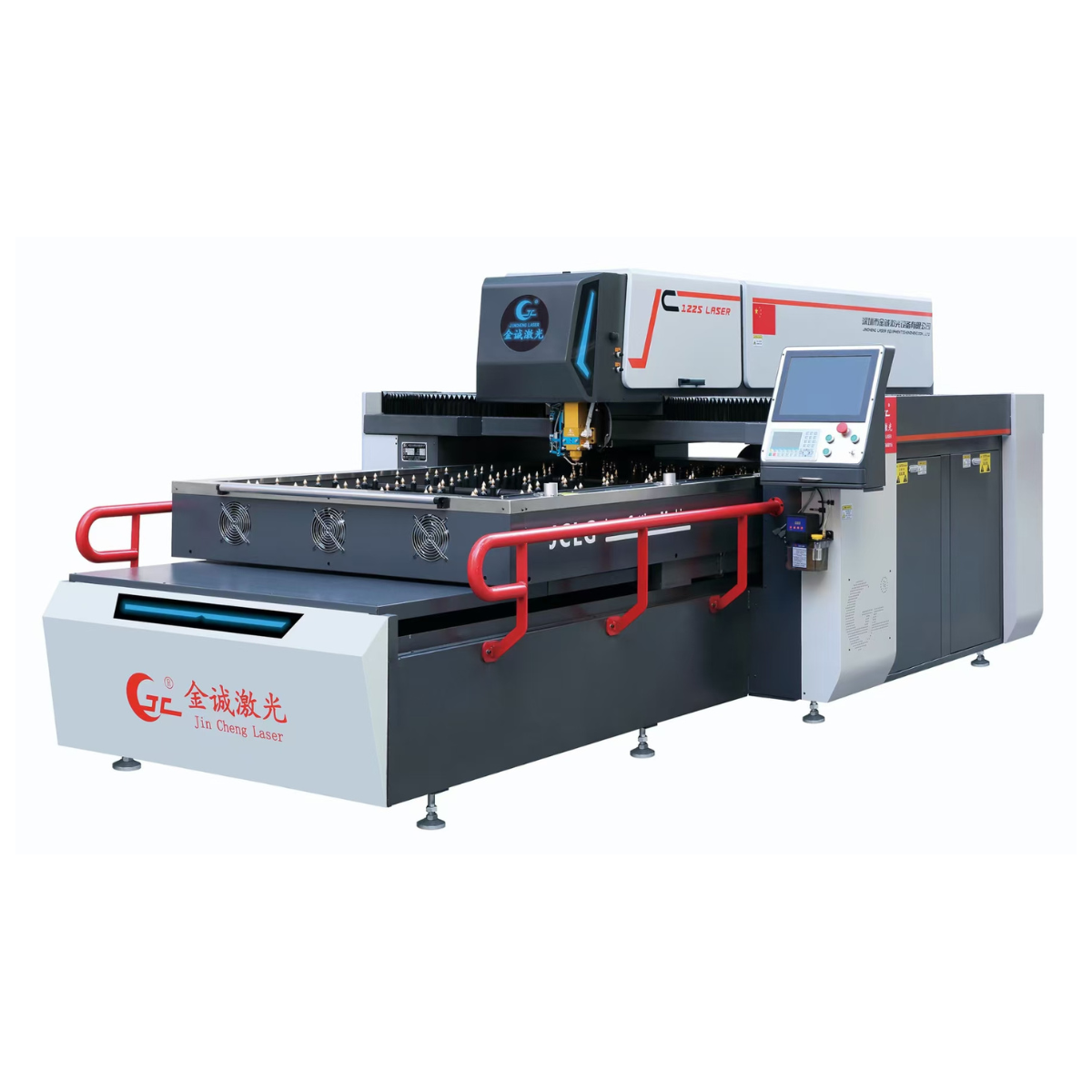

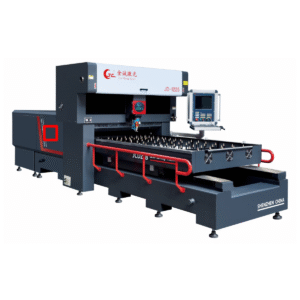

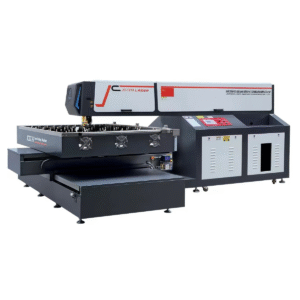

Laser Cutting Machine

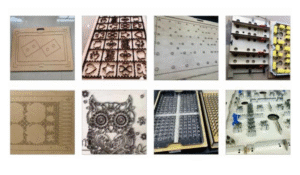

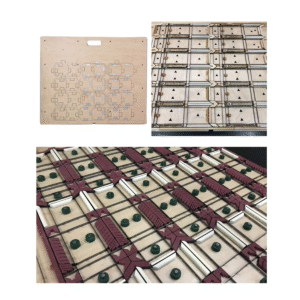

Flat die board laser machine is mainly for cutting various die boards in color print industry, electronic products, and other light industry, sheet metal industries such as carbon steel, sheet, stainless steel sheet, and aluminum alloy sheet; acrylic material; plastic material; and other non-metal sheets. This machine satisfies the die-making factory, carton factory, and other packaging and printing factories that need to make flat dies.
|
Table style
|
Cross table construction
|
|
|
Laser source
|
laser tube
|
|
|
X-axis travel-length
|
1200mm
|
|
|
Y-axis travel-length
|
1800mm
|
|
|
Cutting speed
|
400W
|
600W
|
|
28-32m/h
|
36-40m/h
|
|
|
Re-Positioning Precision
|
≤0.02mm
|
|
|
Cutting kerf width
|
0.45mm,0.71mm,1
.05/1.07mm at one time(die board)
|
|
|
Transmission system
|
Ball screw & Linear guide(TAIWAN)
|
|
|
Driving system
|
Chinese servo motors
|
|
|
Gross Weight
|
2000kg
|
|
|
Laser cutting thickness
|
1-25mm
|
|
|
Gross Weight
|
2000kg
|
|
|
Laser cutting thickness
|
1-25mm(plywood, acrylic board, rubber, pvc board, leather, MDF board)
|
|
|
Metal cutting thickness
|
Carbon steel/lron steel 4
00W 3mm 600W 4mm
Stainless steel 400W 1.5mm 600W 2mm |
|
